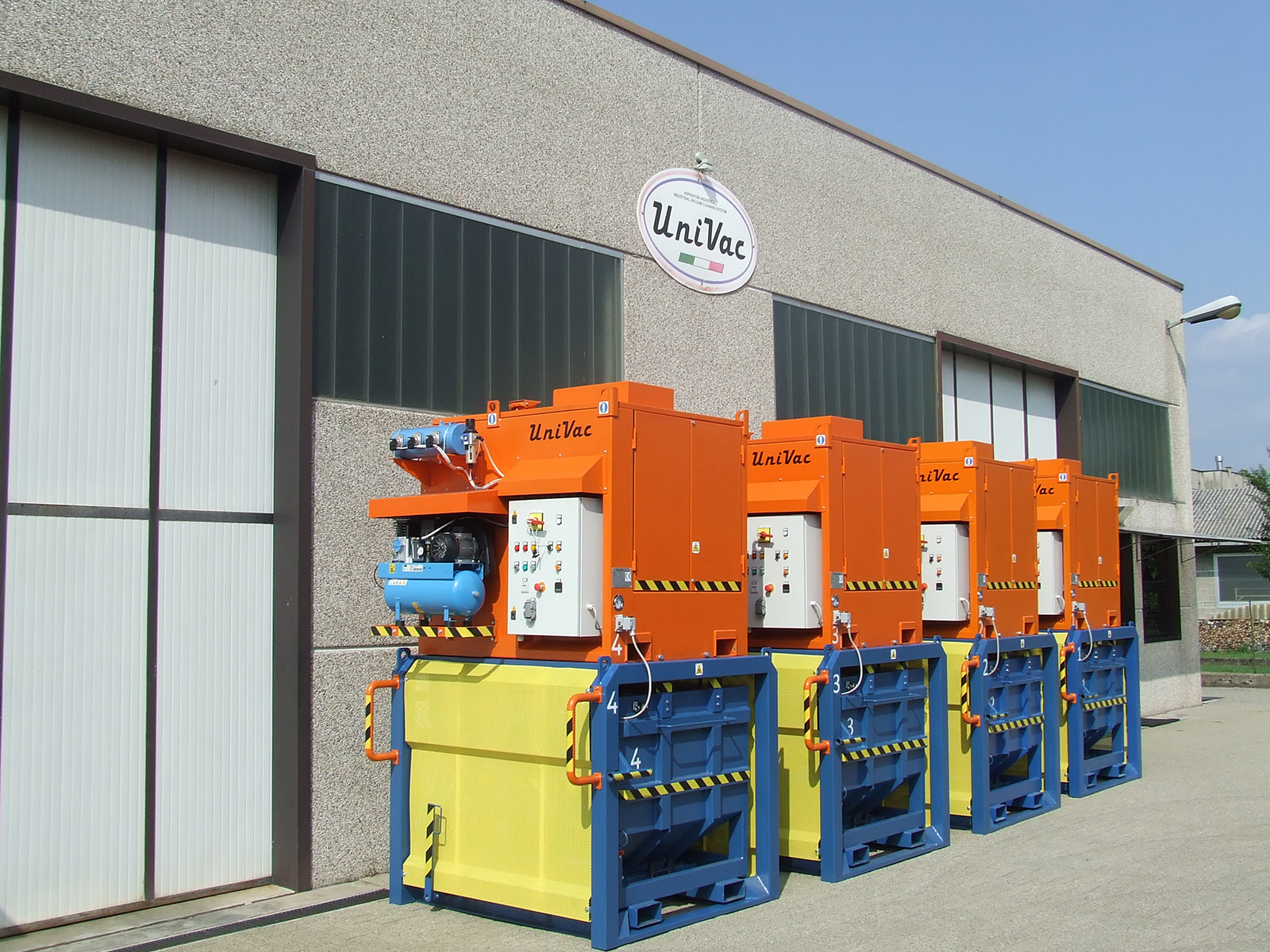

Industrial vacuum cleaner suitable for heavy purpose with integrated container, transportable by fork lift (with a minimum load 3 Ton) or overhead travelling crane. The lower removable container has the capacity of 800 lt, can be easily empted trough a tilting door located on the bottom part of the unit, this tilting door is automatically closed when the unit is lowed to the ground.
The machine is equipped by appropriate safety systems that prevent the opening of the container while the machine is working, moving or in service
The air filtering system is composed by a polyester felt filtering sleeves with internal frame and safety polyester cartridge to protect the pump. automatic and timer system for the filter sleeves cleaning by air injection. The air for the cleaning system is supply by a compressor installed on board.
In the lower container, there is a level gauge, that stops the machine when the container is full.
The machines are supplied to operate with electrical voltage V 400, three-phase, different electrical voltage will be suggest in the request and they will quote separately.
This kind of vacuum unit may be certified according to ATEX Z22 norms.
TECHNICAL DATA
| Electrical Engine kW – Hp | 22 – 30 |
| Dimension mm | 1500x1300x3200 |
| Weight Kg | 1730 |
| Max. Depression | mm/H2O 5000 |
| Max Air Flow | m³/h 1300 |
| Primary Filter | m² 10 |
| Safety Filter | m² 4 |
| Tank Capacity | m³ 0,7 |
